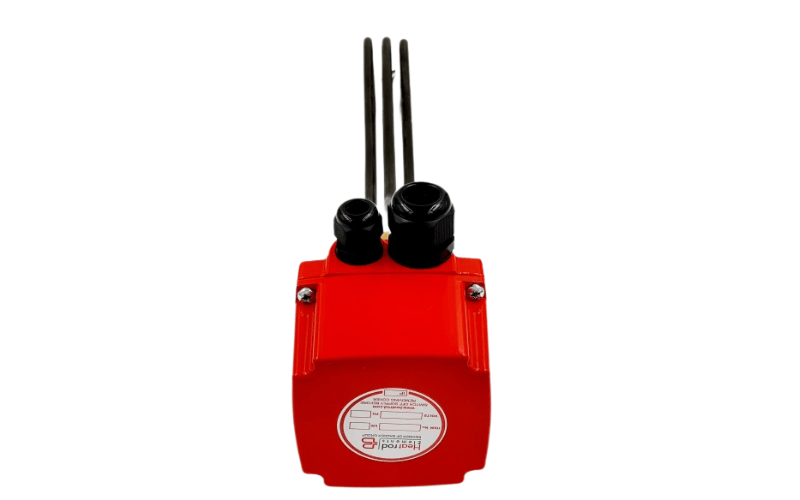

6kW Titanium Heavy Duty Industrial Immersion Heater HRZi
NO STOCK - Available on backorder - dispatched in 3 days, if 3 or more units - 4 weeks
SKU
HRZI616A
Regular price
£312.98 GBP
Regular price
Sale price
£312.98 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Example of applications
Example of applications
Technical Spec
Technical Spec
Number of Elements
3
Material
Titanium
Voltage (V)
240/415
Phase Connection
1/3
Loading (kW)
6kW
Cutout temperature
90°C
Maximum temperature
80°C
Product Information
1/3 Ph, 16", 24", 36" Immersed Length
Key features
– Heavy duty titanium element – designed for hard water areas
– Flexible fitting and wiring options
– Flexible operational features (manual or fixed heat settings)
– IP68 rotatable enclosure
– Diamond-H WTS Dual Function Wired thermostat included
– Control Temp Maximum 80°C
– Safety Cut-Out 90°C
– Terminal Enclosure Conforms and Certified to IP55 | IP65 | IP66 | IP67 | IP68
* Delta version available on request (please contact us for recommendations)
Available options:
|
Item Number |
Thread Size (BSP) |
Immersed Length (in) |
Immersed Length (mm) |
| HRZi616A |
2 ¼ | 16 | 406 |
| HRZi616B | 2 | 16 | 406 |
| HRZi616C |
1 ¾ | 16 | 406 |
| HRZi624A | 2 ¼ | 24 | 609 |
| HRZi624B | 2 | 24 | 609 |
| HRZi624C | 1 ¾ | 24 | 609 |
| HRZi636A | 2 ¼ | 36 | 914 |
| HRZi636B | 2 | 36 | 914 |
| HRZi636C | 1 ¾ | 36 | 914 |
